Visual Label Reference¶
Purpose: Inline example gallery for the current Label Studio class set Rule of use: These images are visual anchors for consistency. The schema definitions still live in Label Studio Schema.
How To Use This Page¶
- Use this page when two annotators are unsure how large a region should be.
- Use the smallest meaningful object a reviewer would name in one phrase.
- When in doubt, prefer the schema's object boundary over a visually tempting but lower-level box.
Raw files

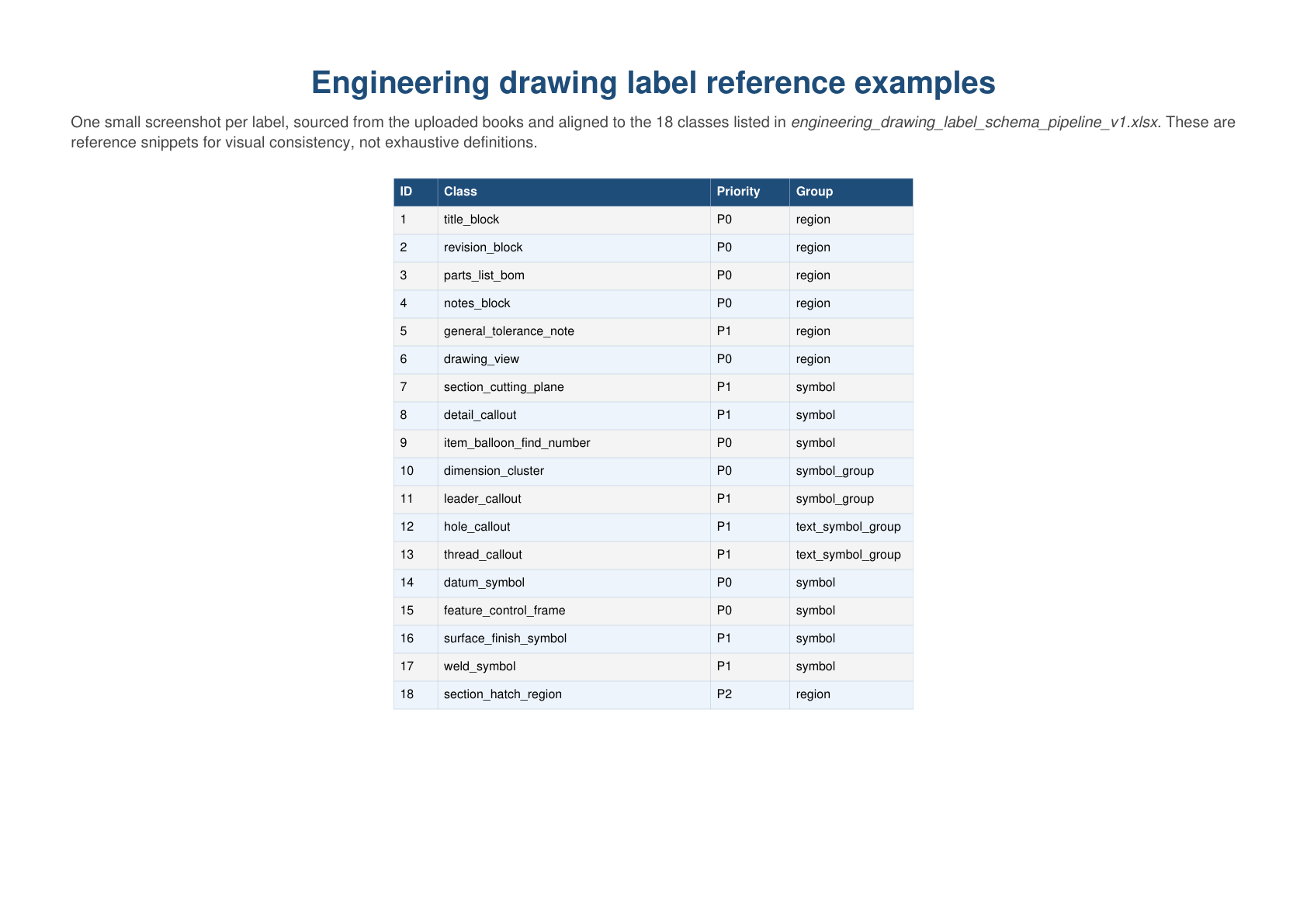

Reference Sheet¶

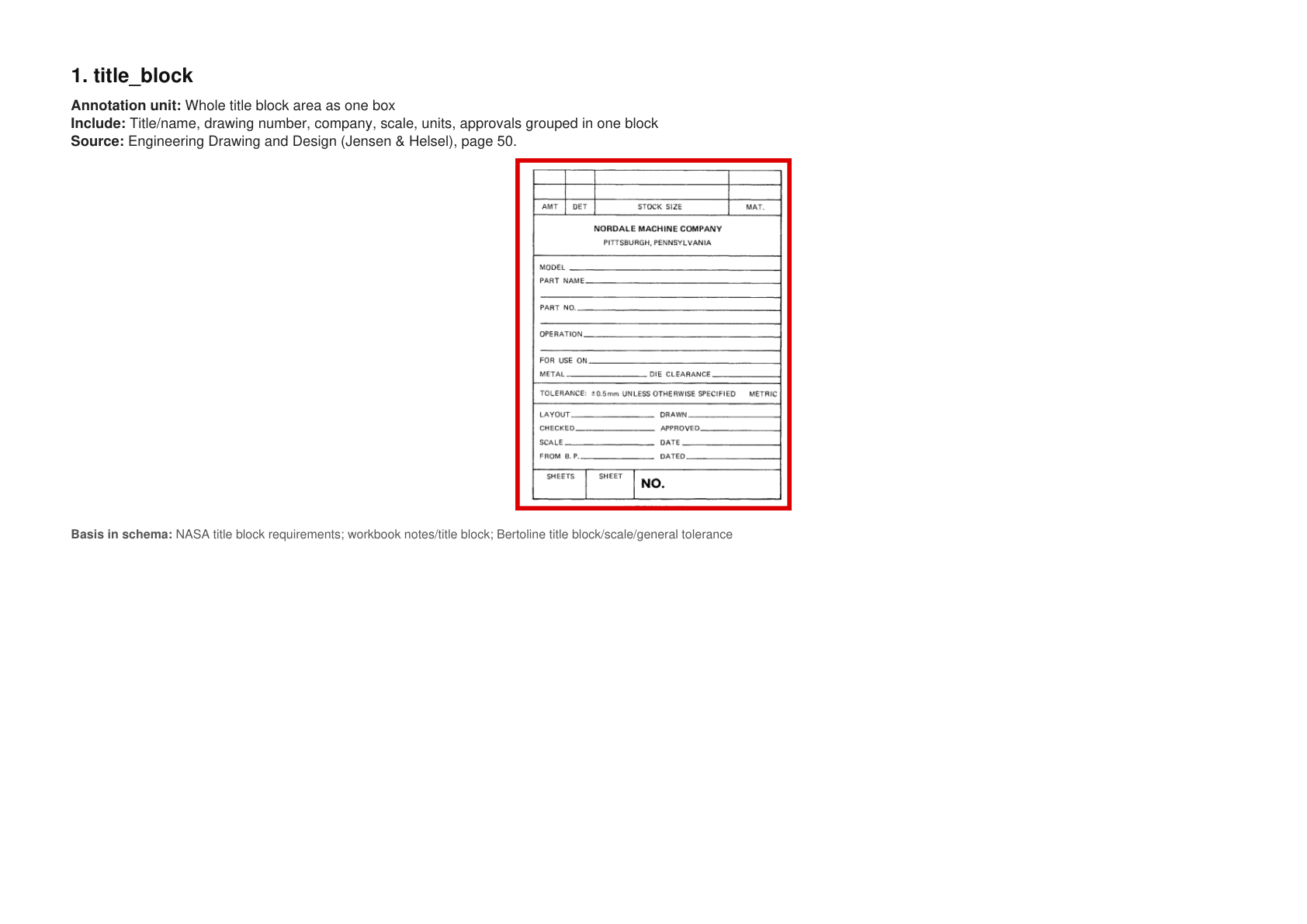

1. title_block¶
Whole title block area as one box.

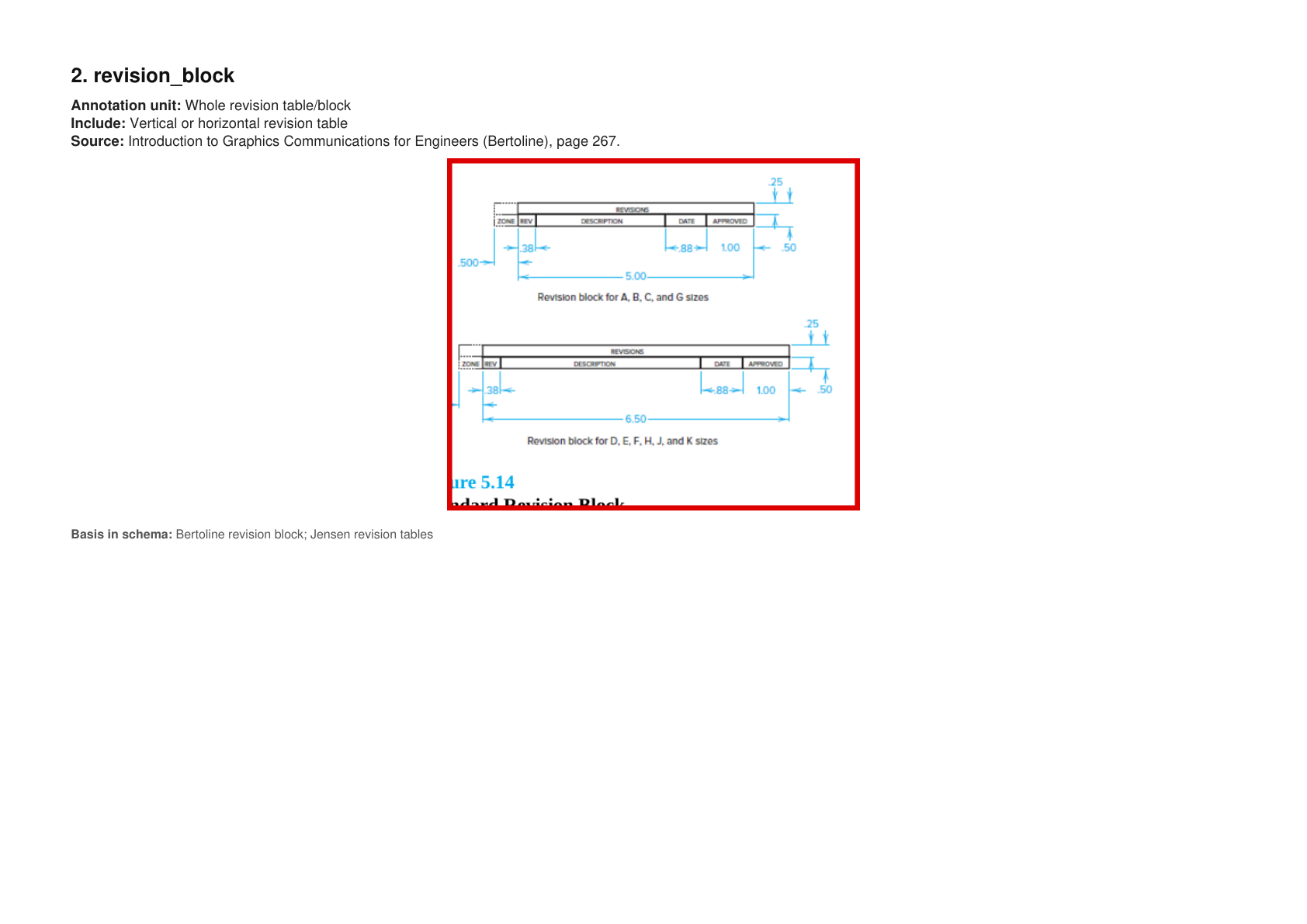

2. revision_block¶
Whole revision table or block as one box.

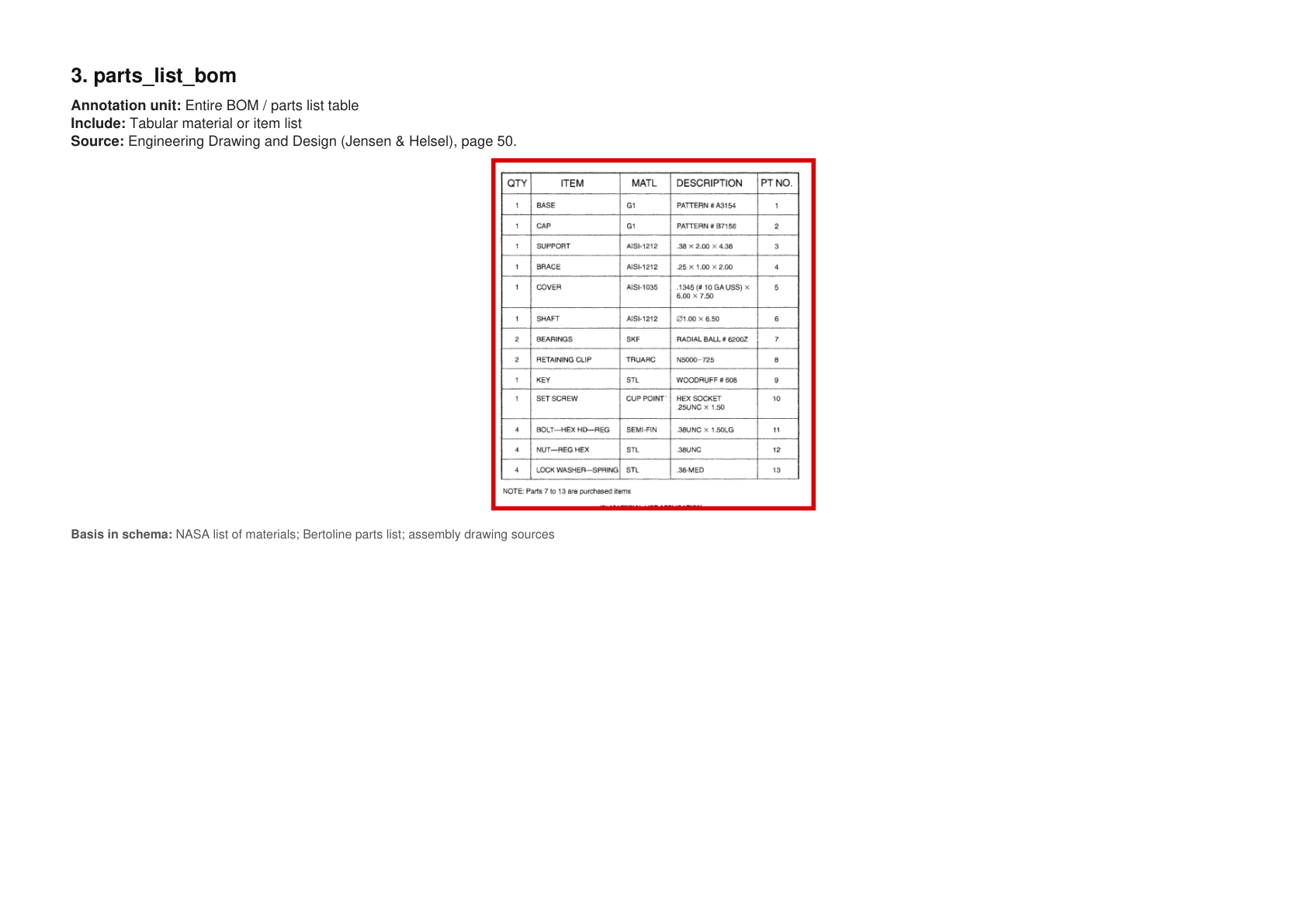

3. parts_list_bom¶
Entire BOM or parts-list table as one box.

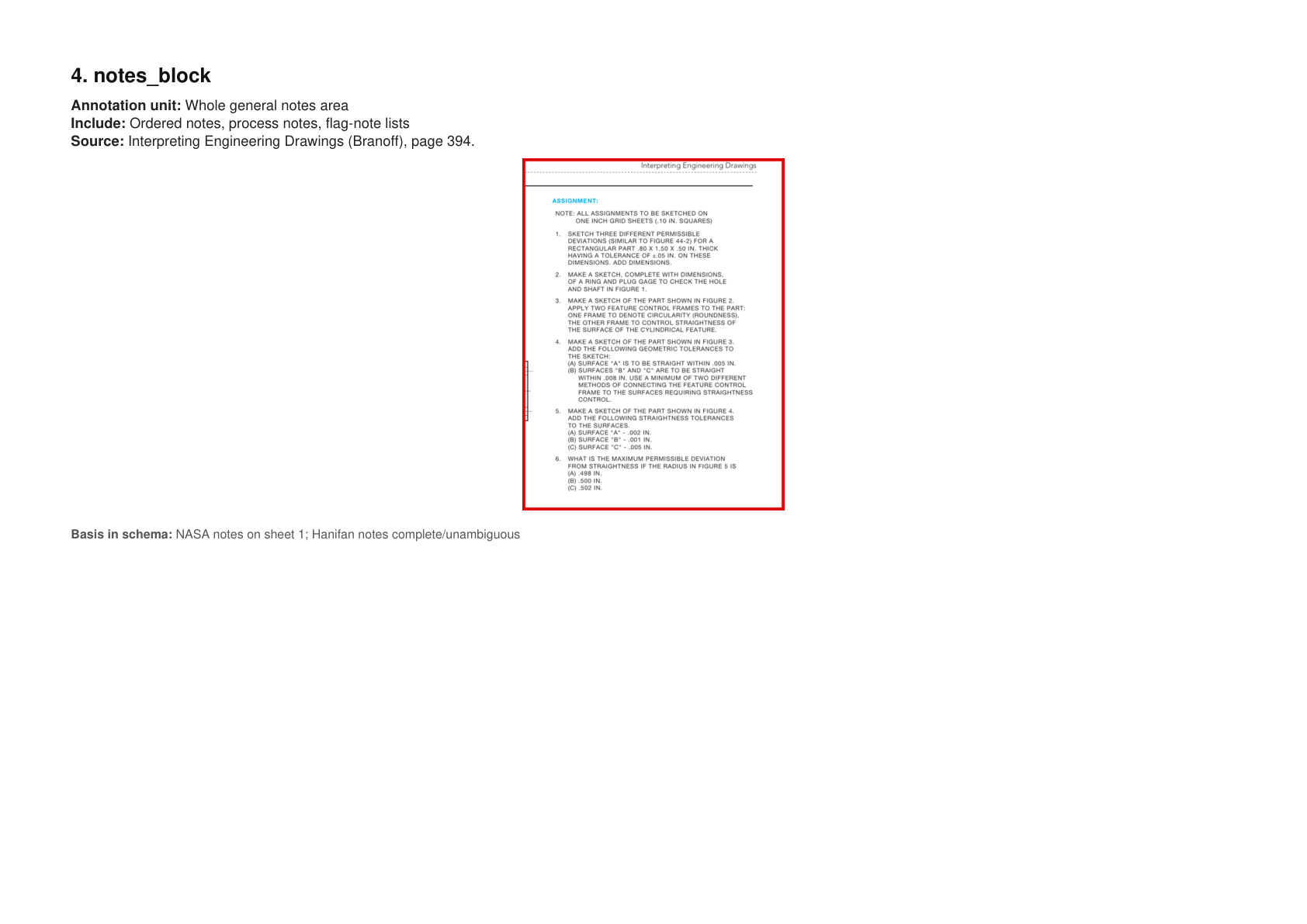

4. notes_block¶
Whole general-notes area as one box.

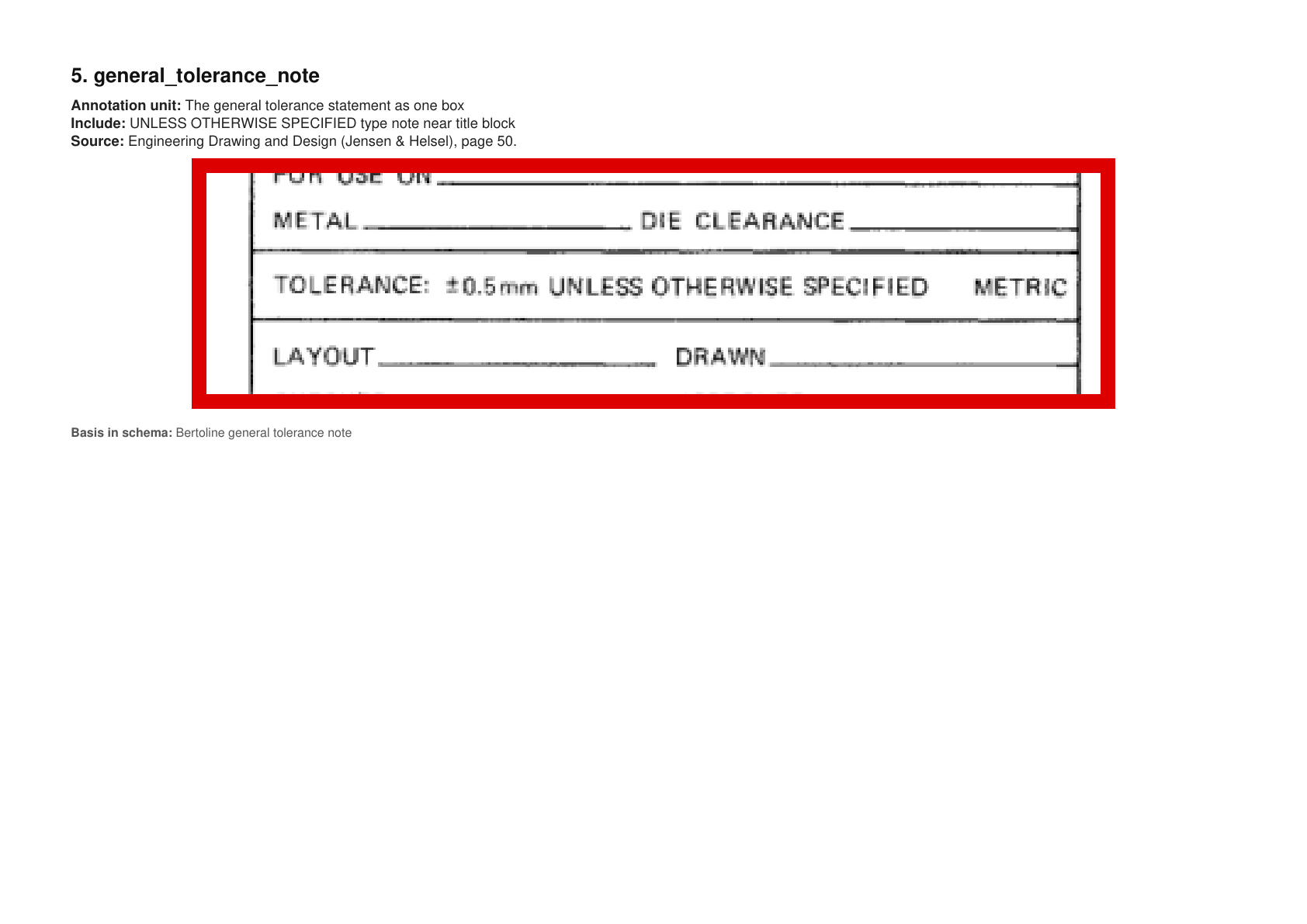

5. general_tolerance_note¶
General tolerance statement as one box.

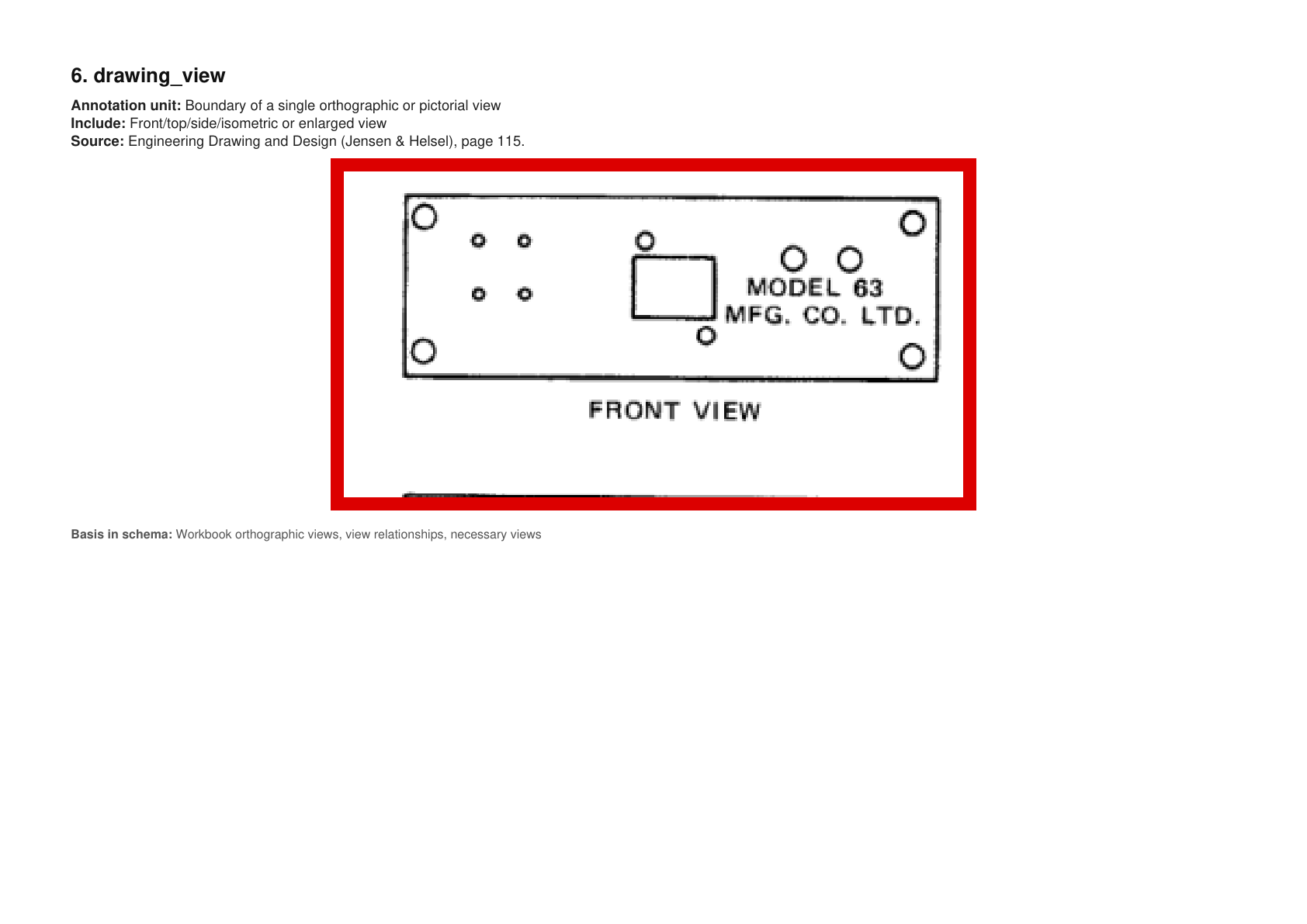

6. drawing_view¶
Boundary of a single orthographic, pictorial, or enlarged view.

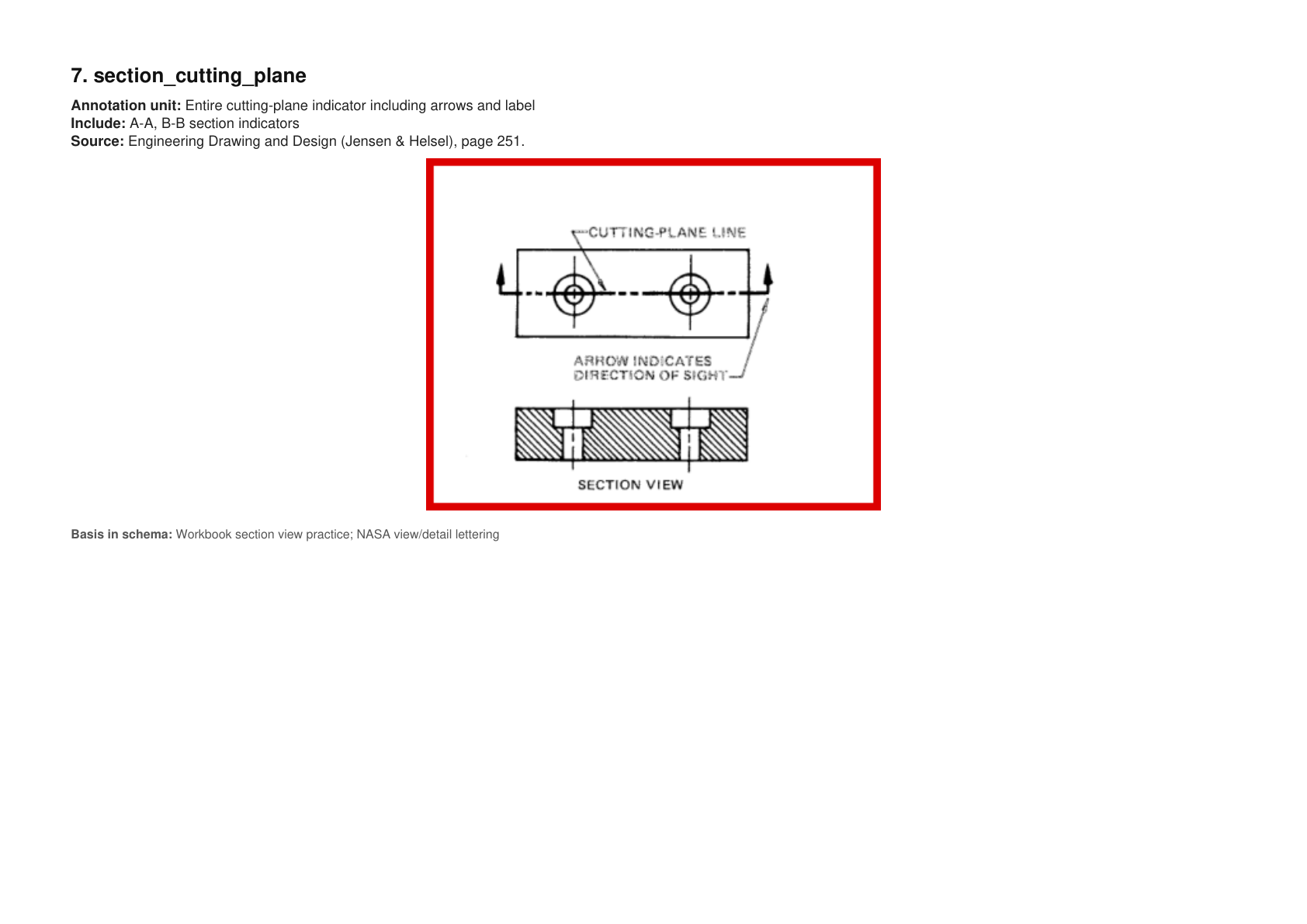

7. section_cutting_plane¶
Entire cutting-plane indicator including arrows and label.

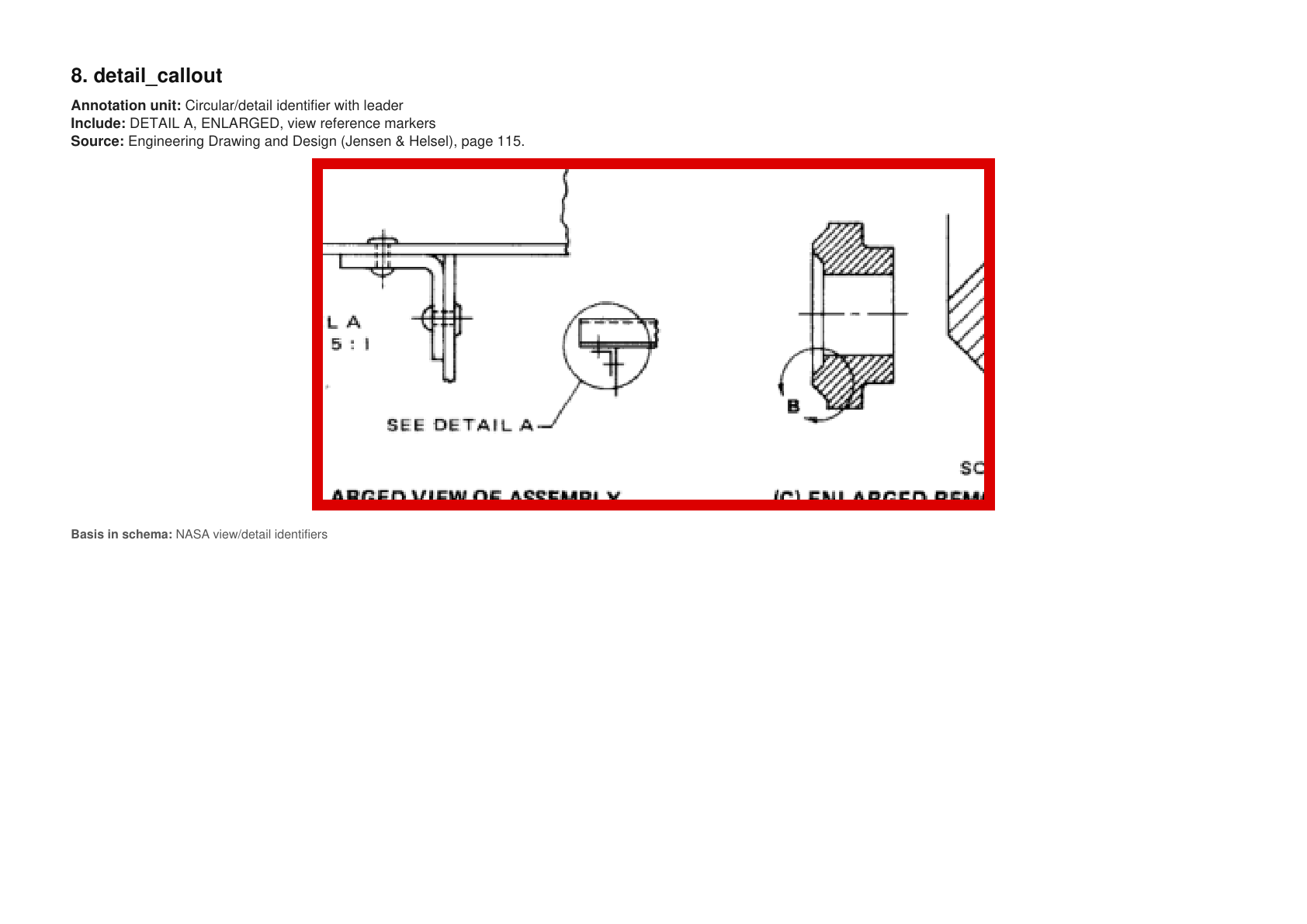

8. detail_callout¶
Circular detail identifier with leader as one object.

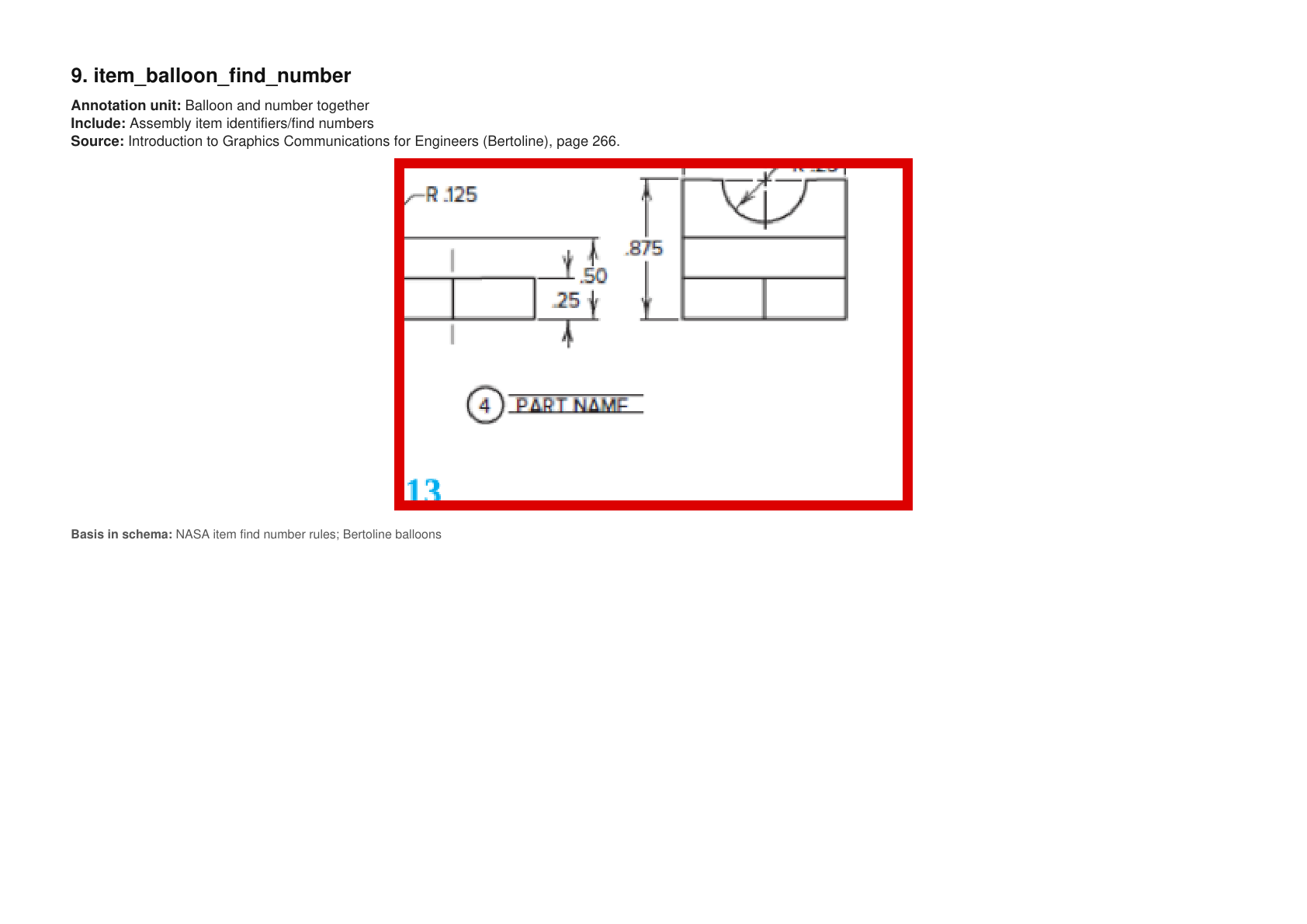

9. item_balloon_find_number¶
Balloon and number together.

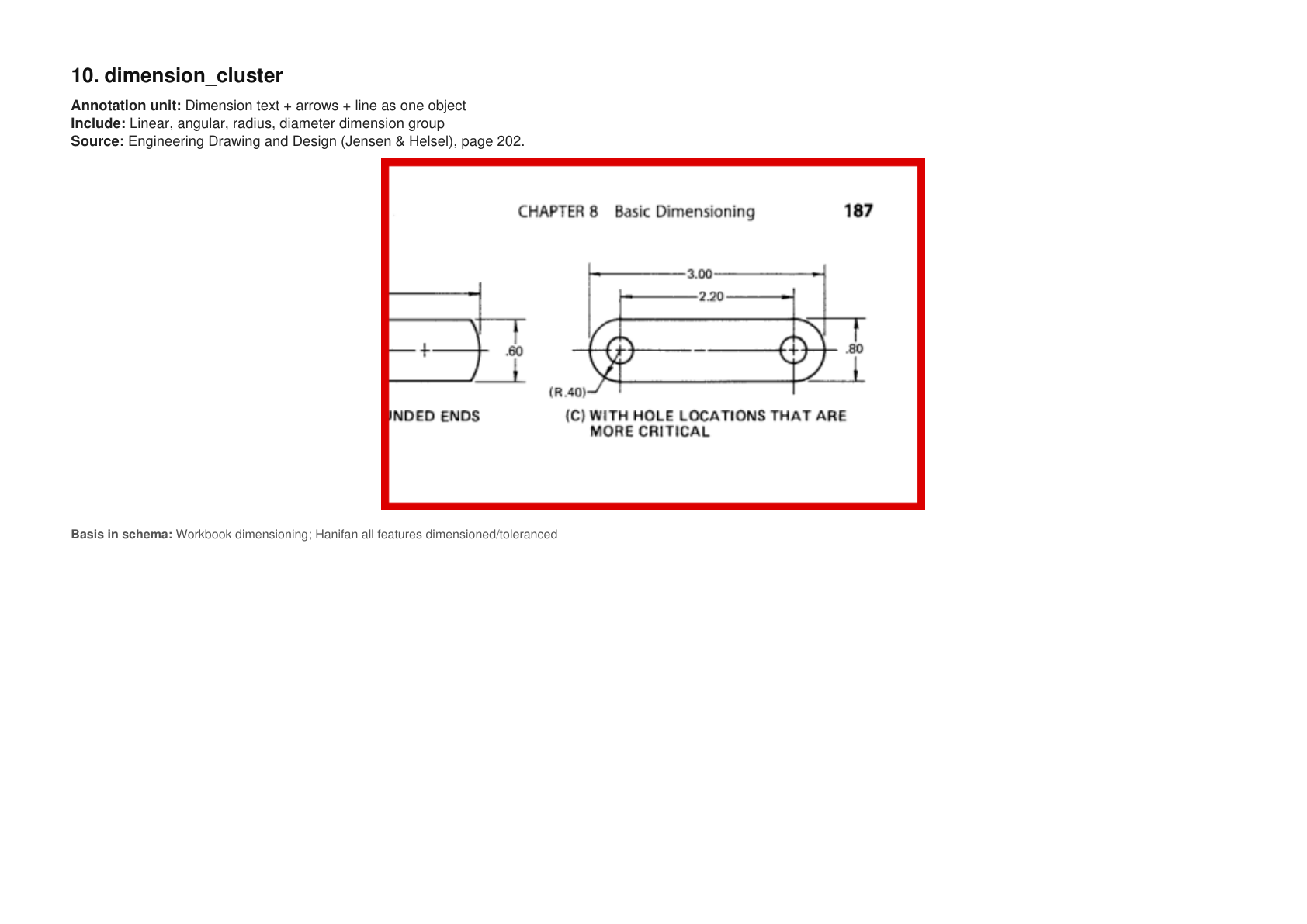

10. dimension_cluster¶
Dimension text, arrows, and line grouped as one object.

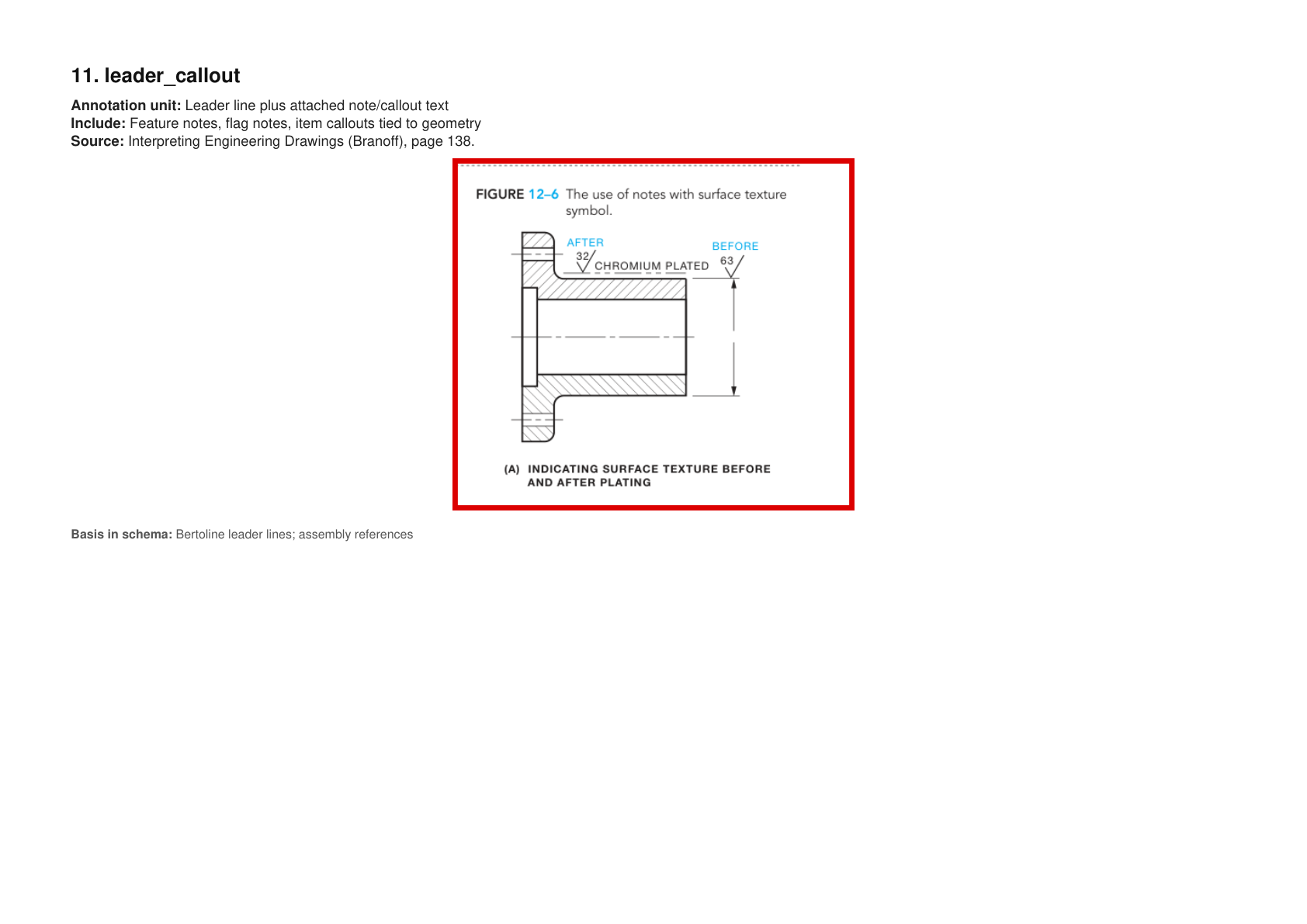

11. leader_callout¶
Leader line plus attached note or callout text as one object.

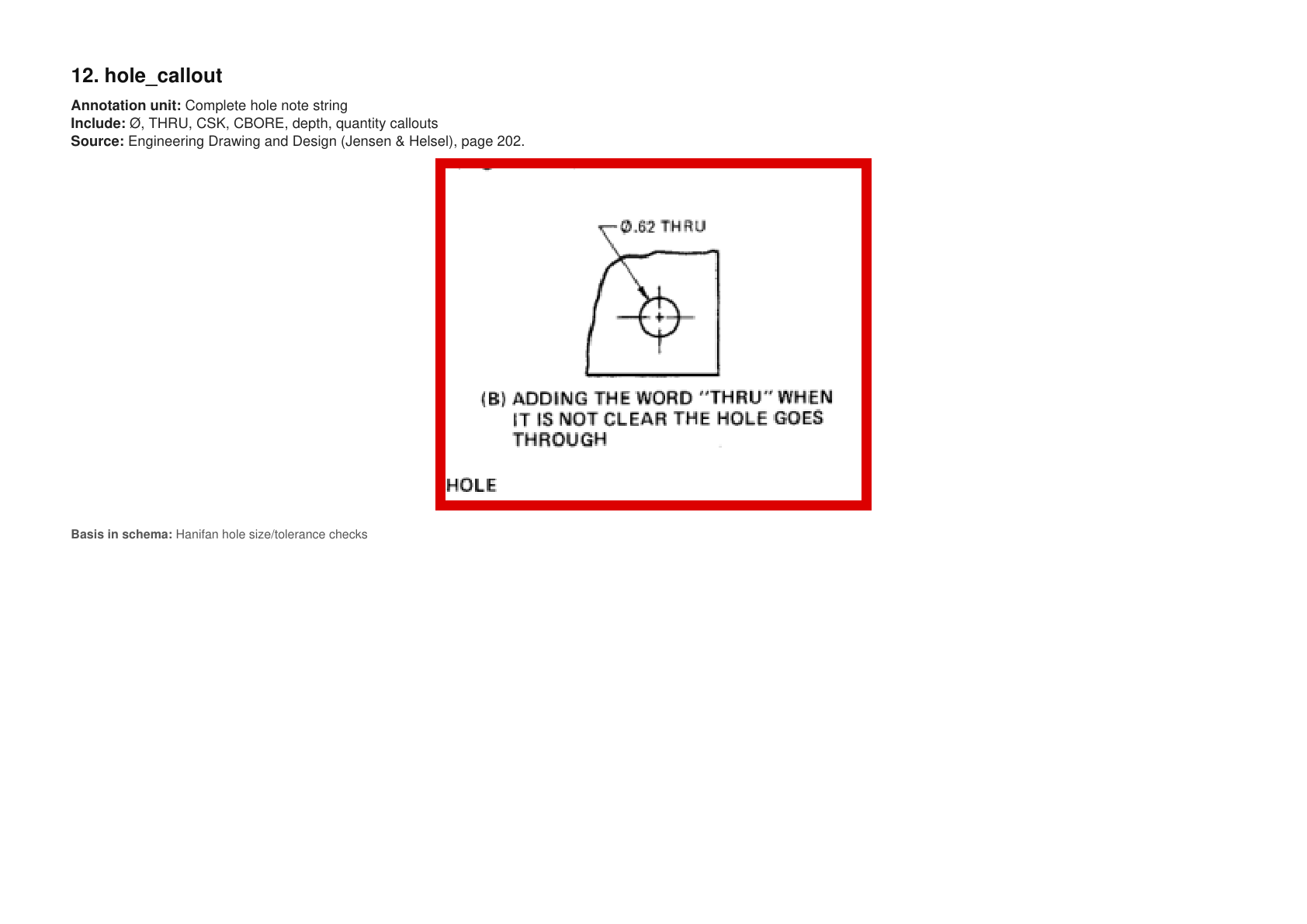

12. hole_callout¶
Complete hole-note string as one object.

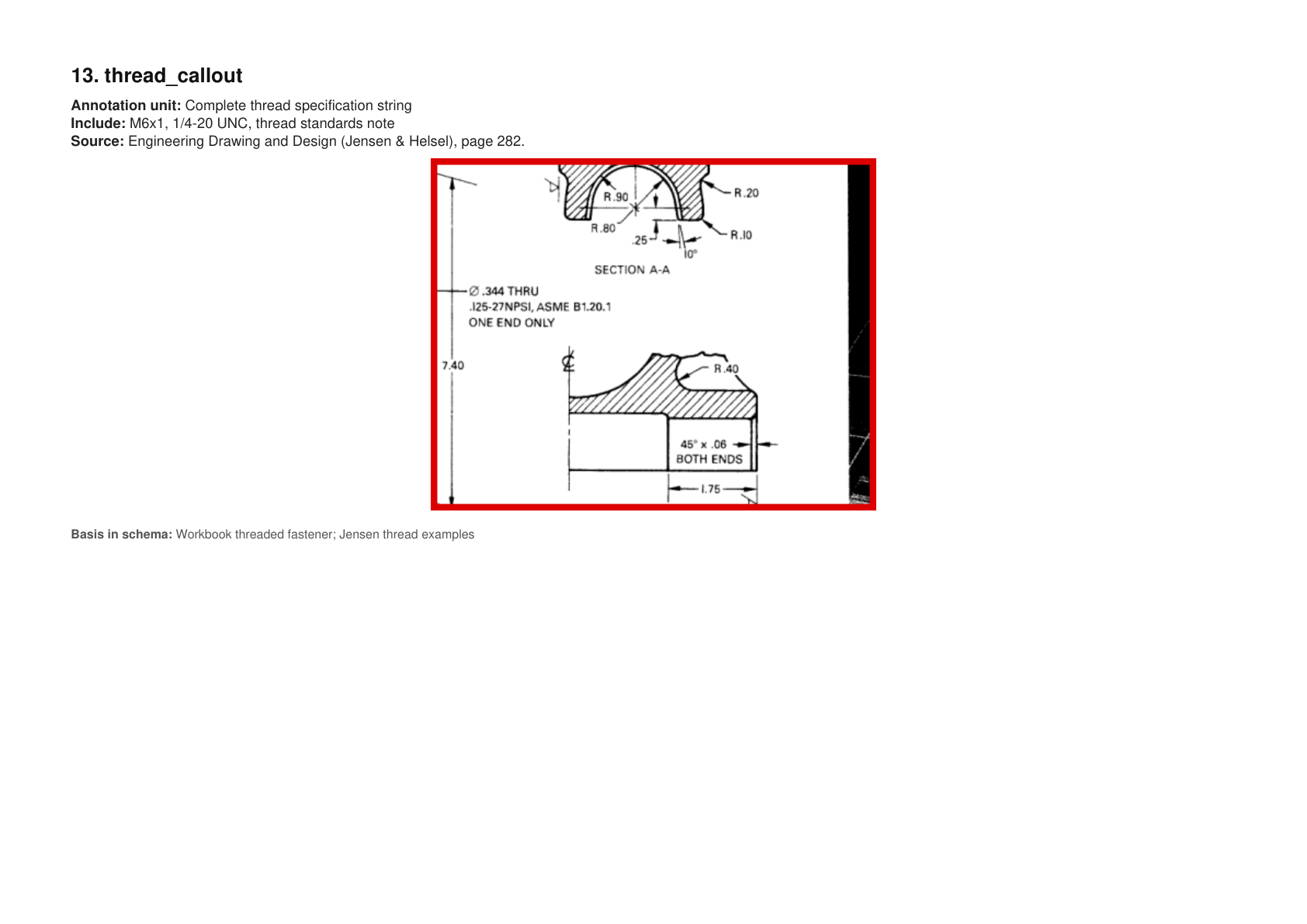

13. thread_callout¶
Complete thread specification string as one object.

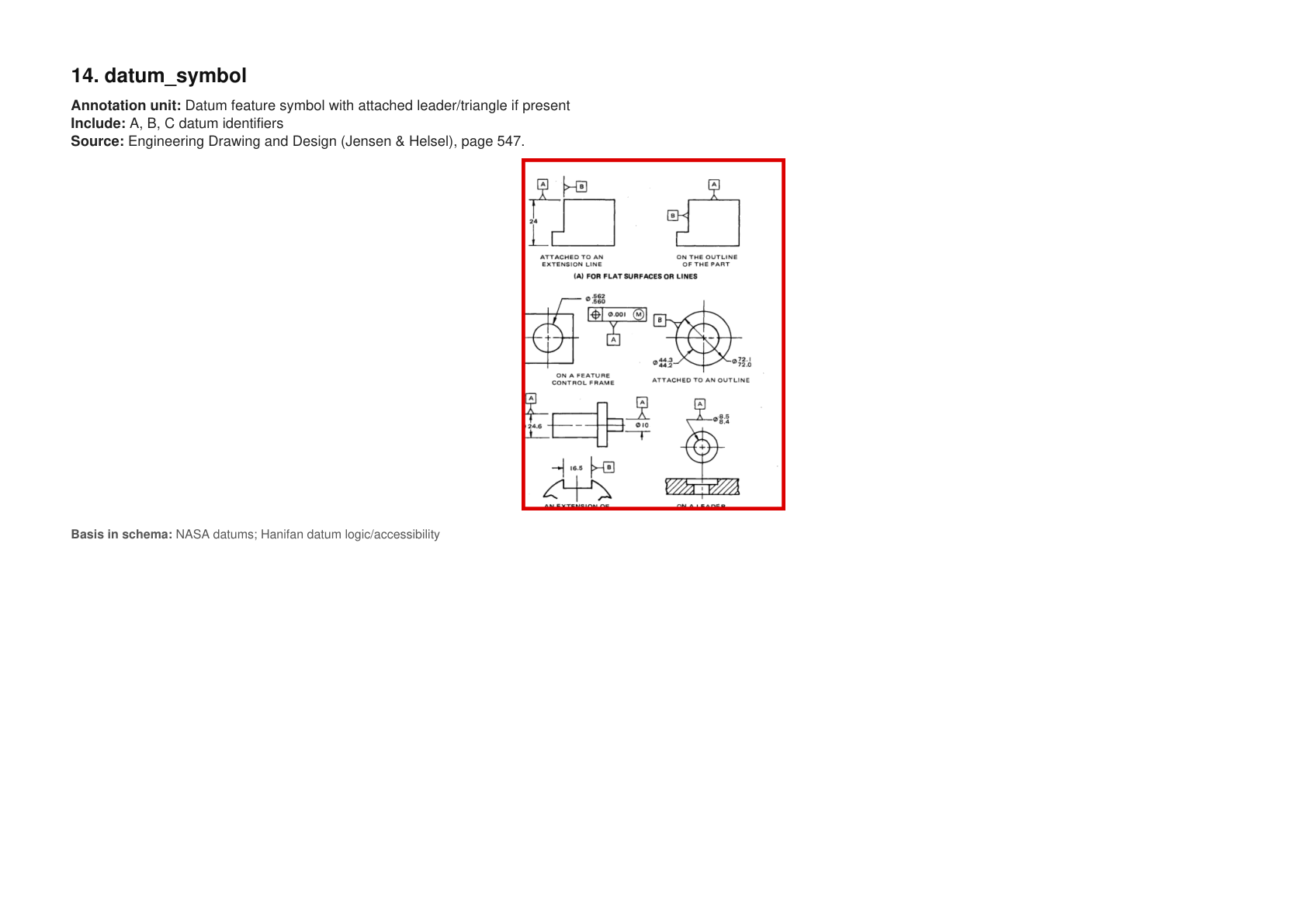

14. datum_symbol¶
Datum symbol with attached leader or triangle if present.

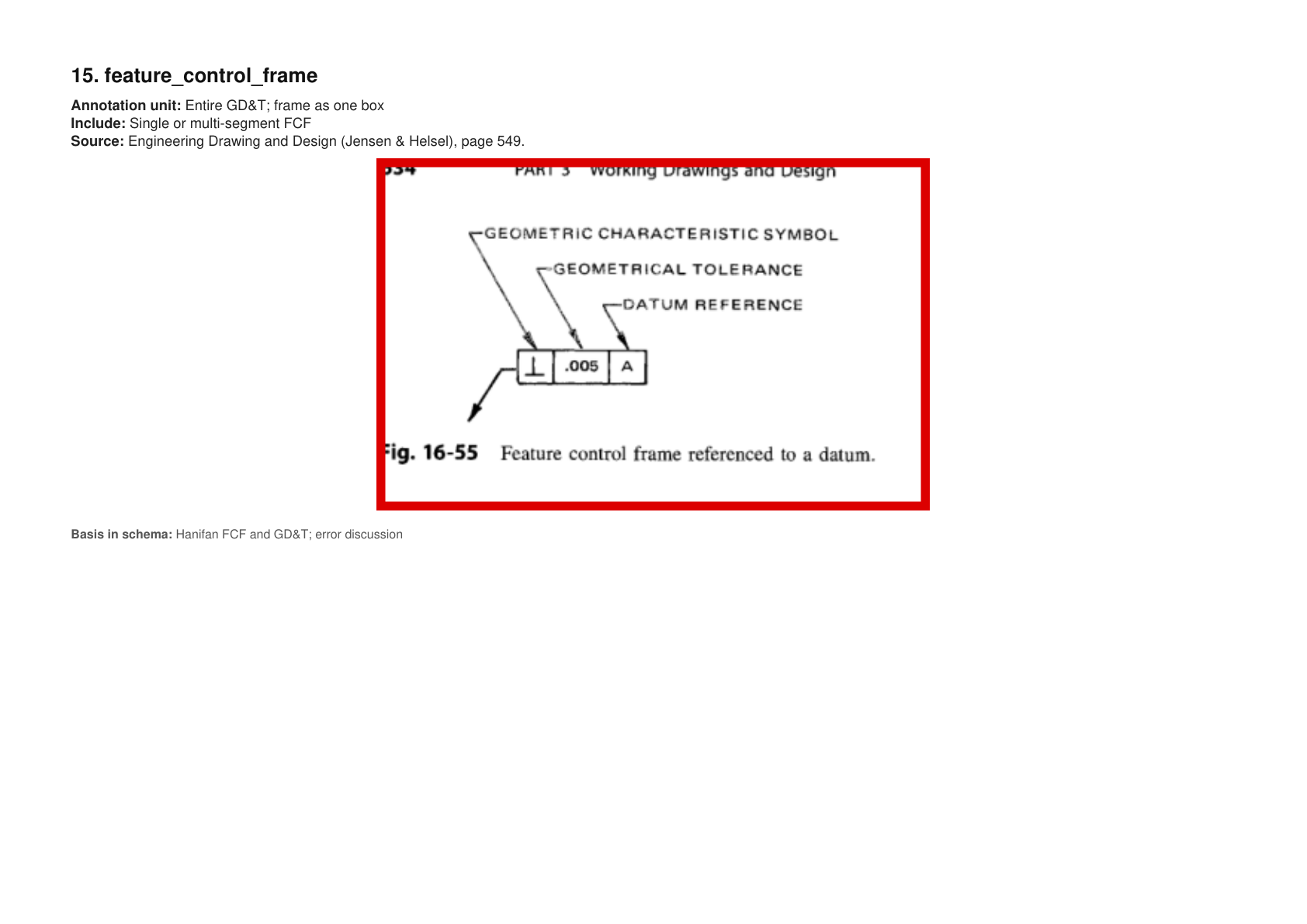

15. feature_control_frame¶
Entire GD&T frame as one box.

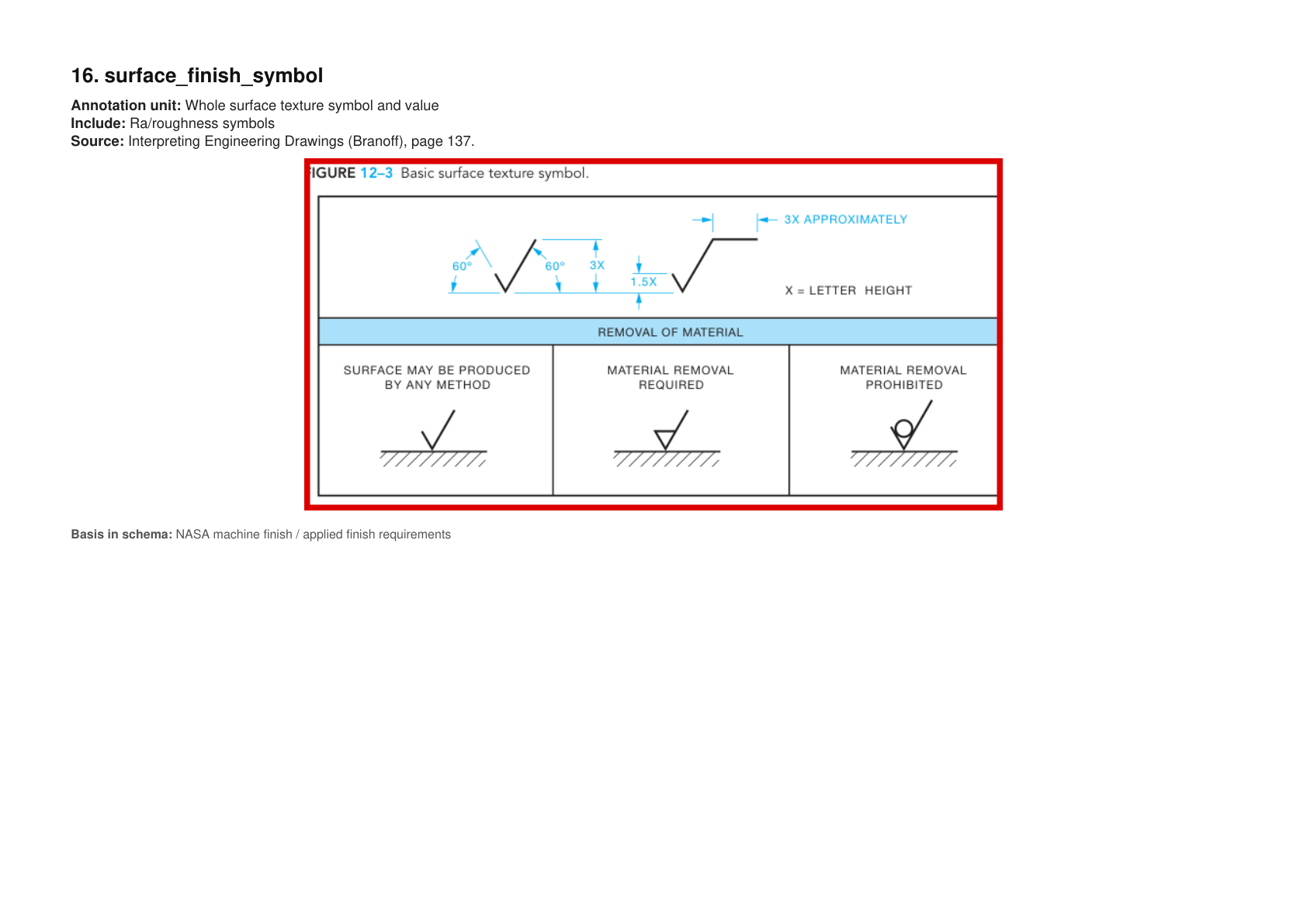

16. surface_finish_symbol¶
Whole surface texture symbol and value.

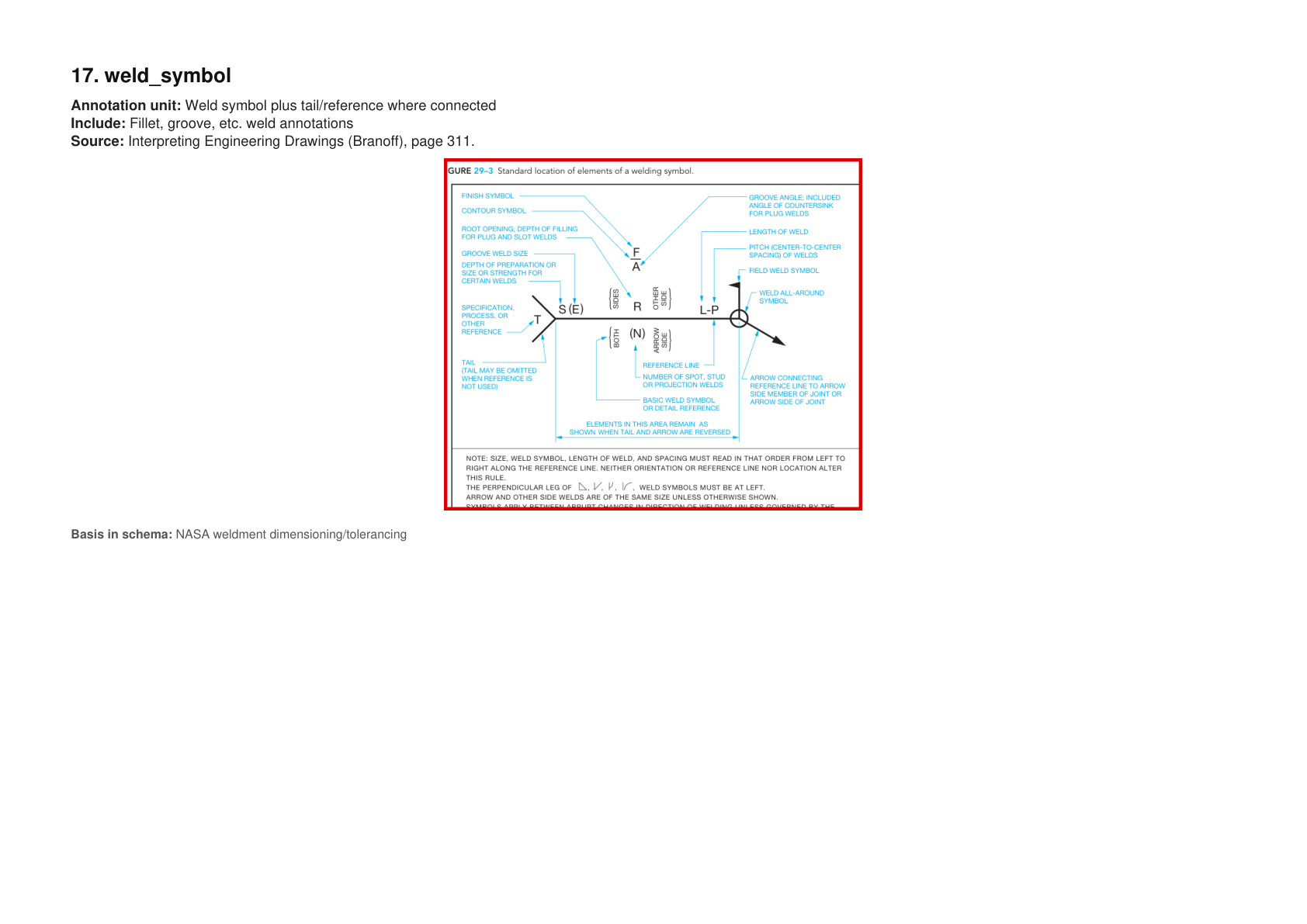

17. weld_symbol¶
Weld symbol plus tail or reference where connected.

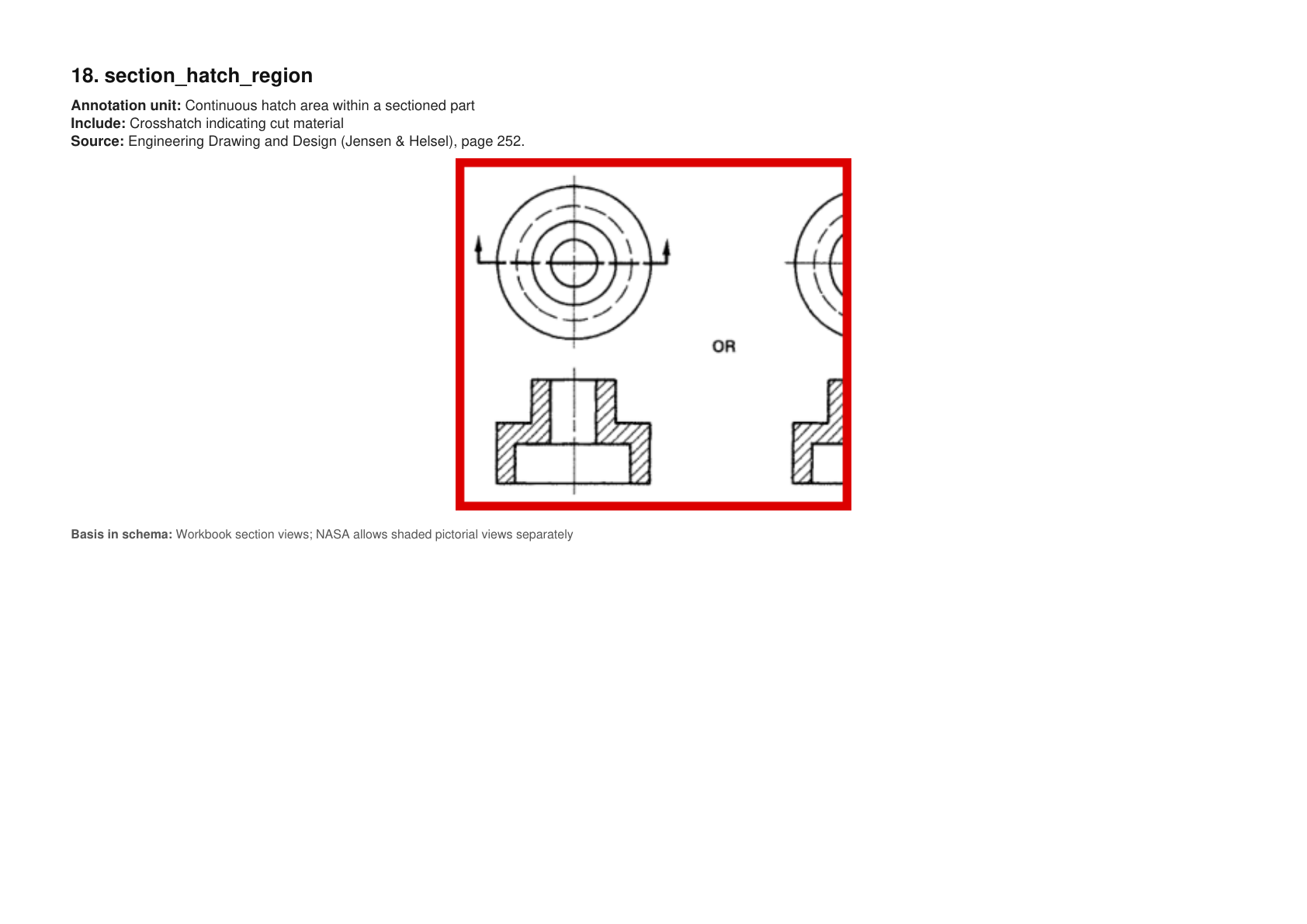

18. section_hatch_region¶
Continuous hatch area inside the sectioned part.
